Review Coil Bar Straightening & Cutting Machine for your component and the required production operation.

Define the component to be produced

This equipment is selected to straighten suitable wire, coil rod or coil bar and cut it to specified lengths. A manufacturing enquiry needs the actual finished-part drawing and the condition of the starting material. List material grade, stock diameter, coil condition, cut length and straightness requirement. Where several components are planned, separate their quantities and dimensions so that a model suitable for one item is not assumed to cover the entire range.

Match the process and tooling

Ask IMC to review coil handling, straightening settings, feeding and the cutting arrangement for the component schedule. Clarify which tools are included for the first job and which are needed for a changeover. Coil rod and coil bar compatibility must be assessed against the actual material and section rather than their names alone. Preparation, material handling and any subsequent operation should appear in the production plan alongside this process.

Establish acceptance before ordering

A representative component should be checked for cut length, straightness and the surface condition of the finished pieces. State the drawing requirements and how the result will be assessed. Use the published specifications to shortlist the model, then send the material and batch information with your chosen quotation options. Agree the supplied tooling, power requirements and support scope in the written offer.

Information to send with your enquiry

Material grade
Stock diameter
Coil condition
Cut length and straightness requirement

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Maximum Length Required

Min And Max Diameter of the Job

Quantity Required

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

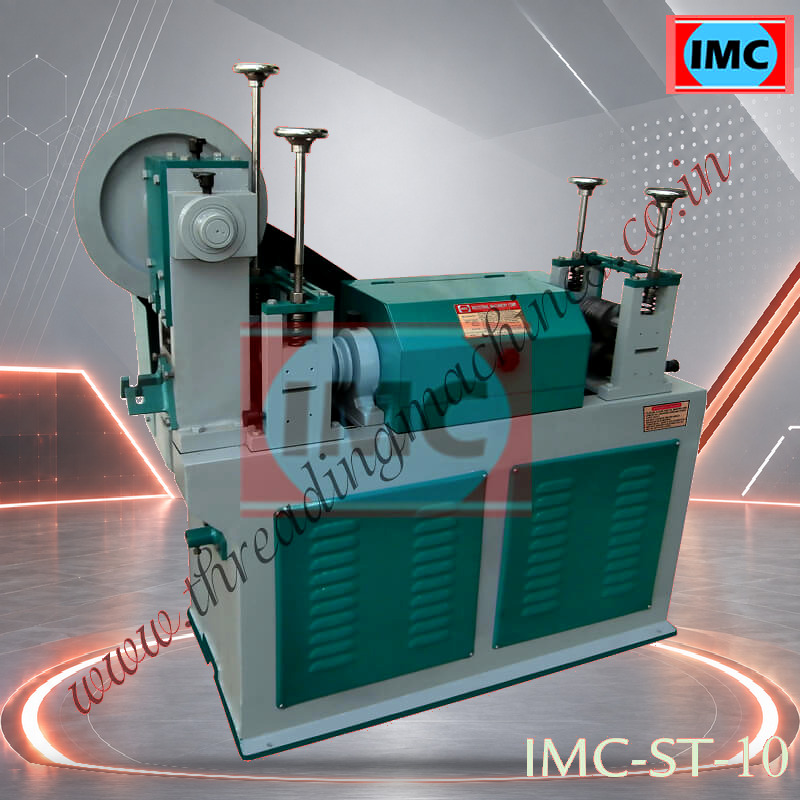

IMC-ST-10 Automatic Wire Cutting and Straightening System

Wire | Rod straightening and cutting machine

IMC Wire Straightening and Cutting Machine 16MM 6M Long Manufacturer, Exporter Punjab, India

Wire Straightening and Cutting Machine 16MM | Industrial Production

Wire Straightening and Cutting Machine 16MM 6M Long Length Manufacturer India

Wire Rod Straightening and Cutting Machine | High-Precision Solutions by IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

IMC, the Industrial Machinery Corporation, introduces its remarkable Wire Straightening and Cutting Machine, a game-changer in the wire processing industry. With its advanced technology and precision engineering, this machine sets new benchmarks in efficiency, accuracy, and versatility.

IMC's Wire Straightening and Cutting Machine combines state-of-the-art features with exceptional craftsmanship. Every aspect of its design is meticulously engineered to deliver flawless performance and exceptional durability, ensuring a long lifespan even under demanding production conditions.

The machine's wire straightening capability is nothing short of exceptional. IMC's engineering prowess ensures that wires of various materials and diameters are straightened with unparalleled precision. The machine's innovative straightening mechanisms and adjustable settings guarantee consistent results, minimizing wire deformations and maximizing productivity.

IMC's Wire Straightening and Cutting Machine is a versatile workhorse. It can handle a wide range of wire types, including steel, aluminum, copper, and more. Whether it's thin gauge wires or heavy-duty cables, this machine tackles them all with ease. Its adjustable cutting length and speed settings provide flexibility to meet diverse production requirements.

Efficiency lies at the heart of IMC's Wire Straightening and Cutting Machine. Its high-speed operation, coupled with automated feeding and cutting mechanisms, ensures swift and precise wire processing. This translates into increased production output, reduced labor costs, and improved overall efficiency for wire manufacturers.

IMC prioritizes user safety and operator comfort. The Wire Straightening and Cutting Machine is equipped with comprehensive safety features, including emergency stop buttons, protective guards, and safety interlocks. Its ergonomic design and user-friendly interface make operation intuitive and minimize operator fatigue, enhancing overall productivity.

IMC's commitment to quality extends to the machine's construction. The Wire Straightening and Cutting Machine is built using premium-grade materials and undergoes stringent quality control measures to guarantee exceptional performance and longevity. This ensures that manufacturers can rely on the machine for years to come, with minimal maintenance and downtime.

In line with their eco-conscious approach, IMC ensures that their Wire Straightening and Cutting Machine is designed with sustainability in mind. It incorporates energy-efficient components and optimized power consumption, reducing environmental impact while delivering peak performance. IMC's commitment to sustainability goes hand in hand with their focus on innovation and excellence.

IMC provides comprehensive customer support to accompany their Wire Straightening and Cutting Machine. From installation and training to maintenance and technical assistance, their team of experts is dedicated to ensuring a smooth and seamless experience for customers. IMC's commitment to customer satisfaction is unwavering.

IMC's Wire Straightening and Cutting Machine represents a new era in wire processing technology. Its exceptional performance, versatility, and reliability empower wire manufacturers to streamline their production processes and achieve outstanding results. With IMC, precision wire straightening and cutting become effortless, revolutionizing the wire processing industry.

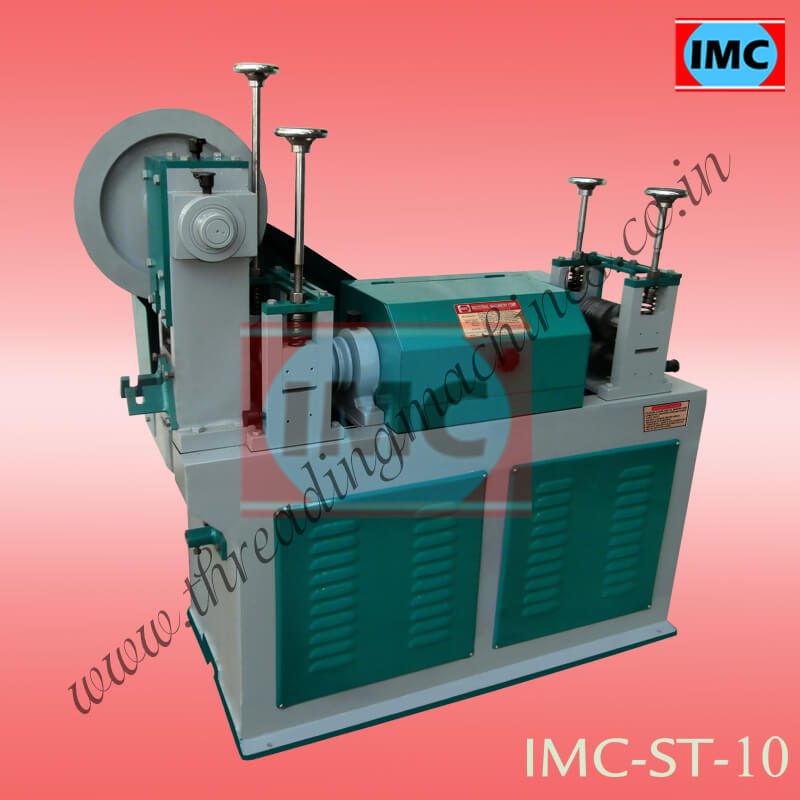

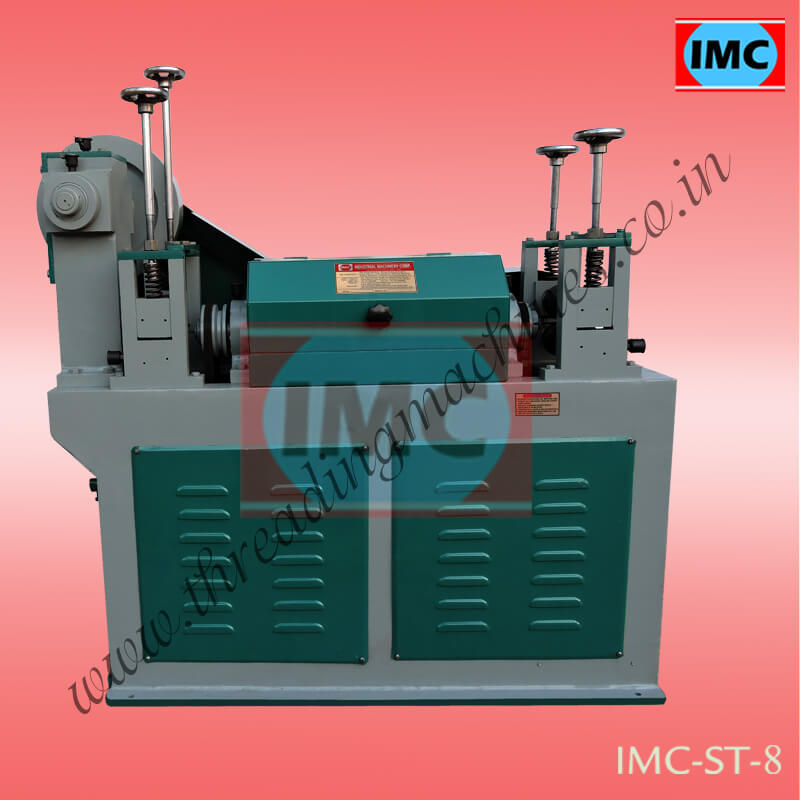

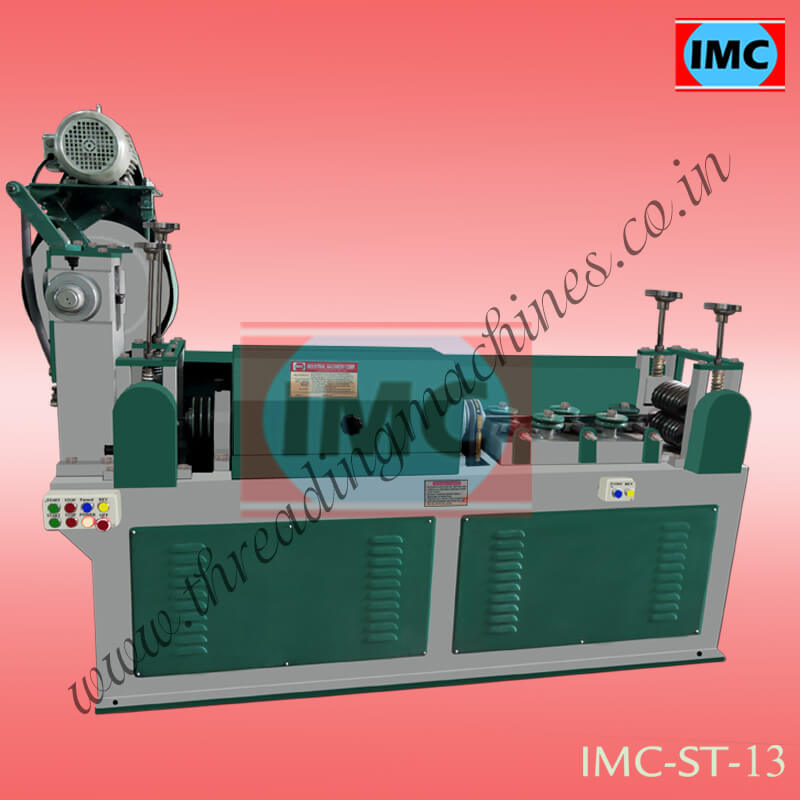

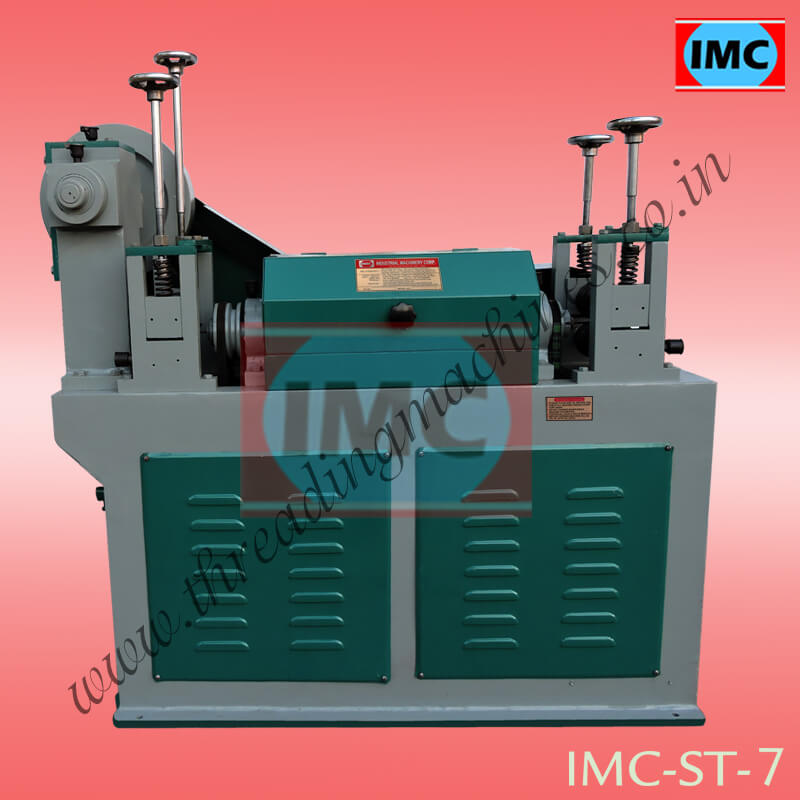

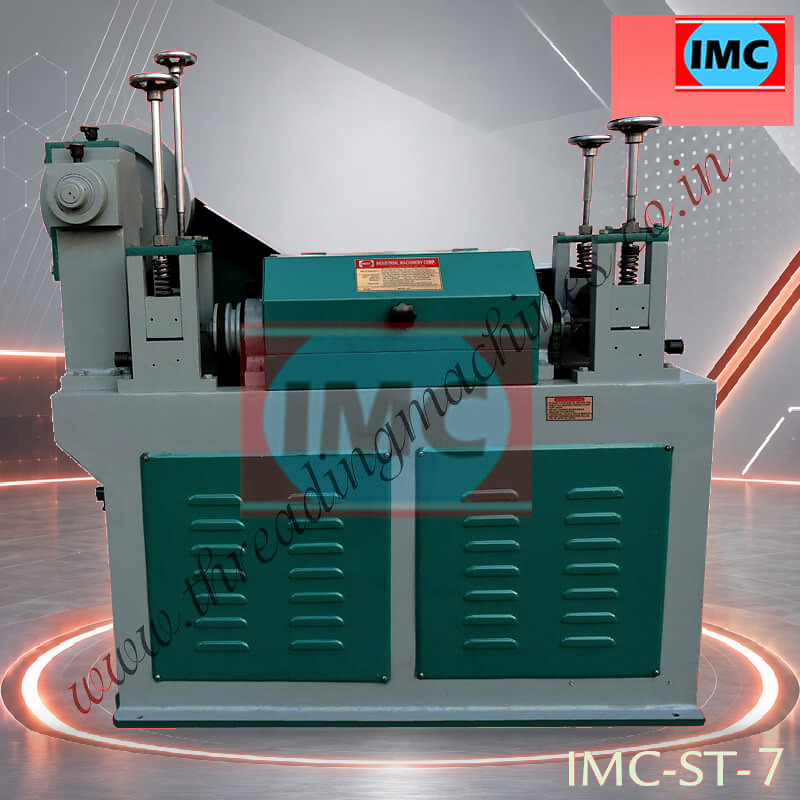

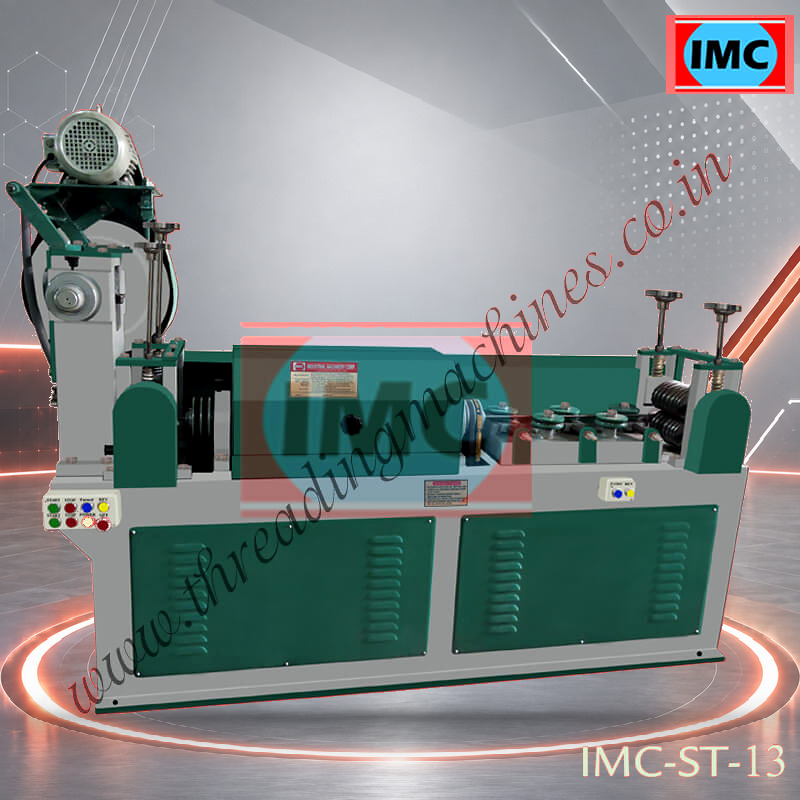

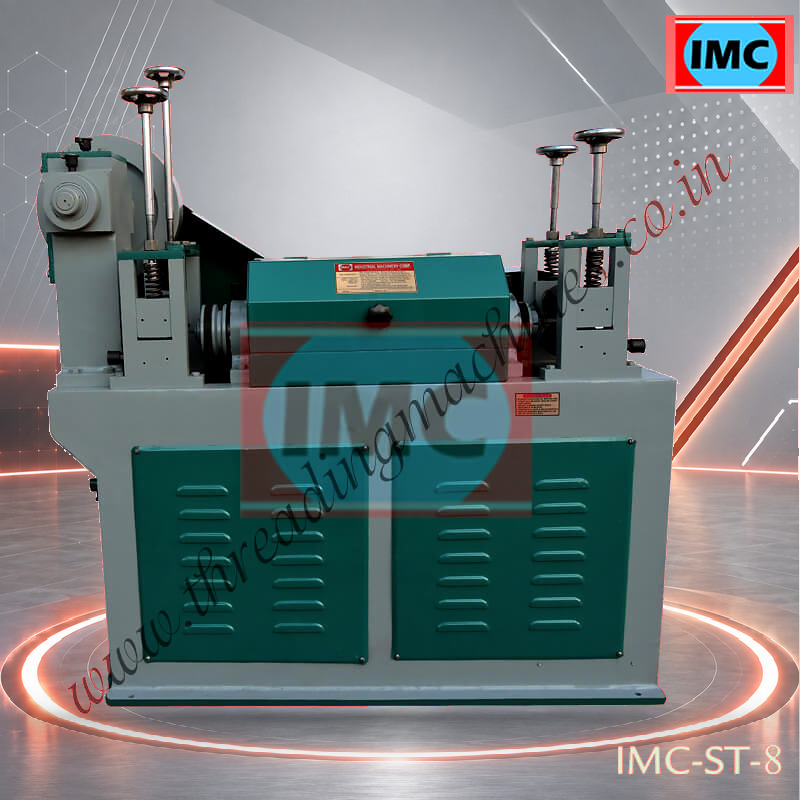

Specifications :	IMC-ST-7	IMC-ST-8	IMC-ST-10	IMC-ST-12	IMC-ST-13
In Thickness of wire	2 to 7mm	3 to 8mm	4 to 10mm	4 to 12mm	3 to 13mm
In Length of wire to be cut automatically	As per Requirement	As per Requirement	As per Requirement	As per Requirement	As per Requirement
Feeding capacity per min.	70' feet	70' feet	70' feet	60' feet	60' feet
Power of motor H.P.	3 H.P.	5 H.P.	5 H.P.	10 H.P.	10 H.P.
Required R.P.M.	1440	1440	1440	1440	1440
Approx. Weight in Kg.	410	460	550	1000	1200
Floor space required	42"x18"	48"x20"	52"x20"	60"x22"	82"x22"

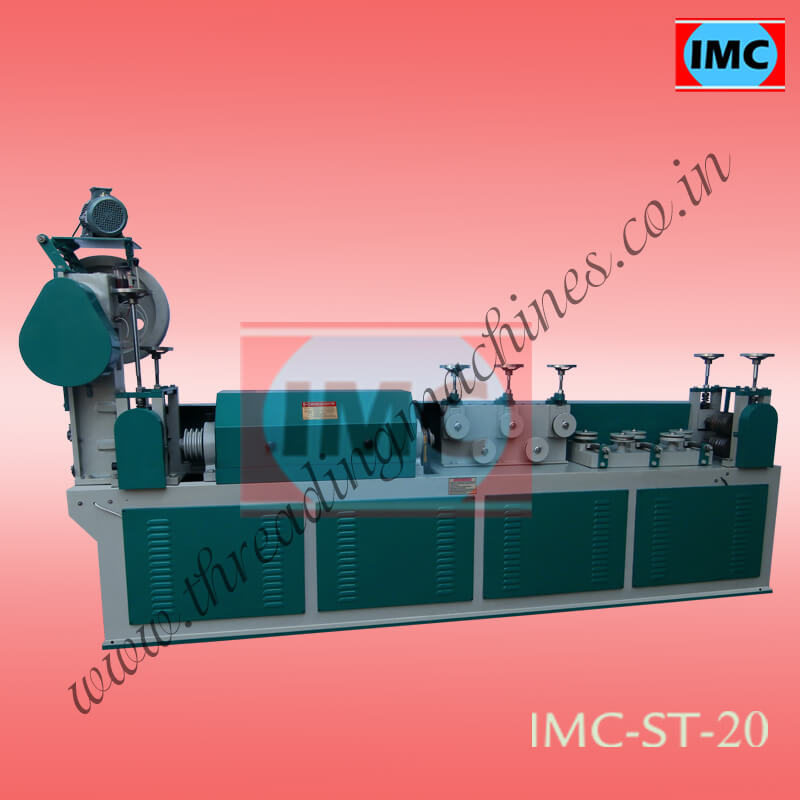

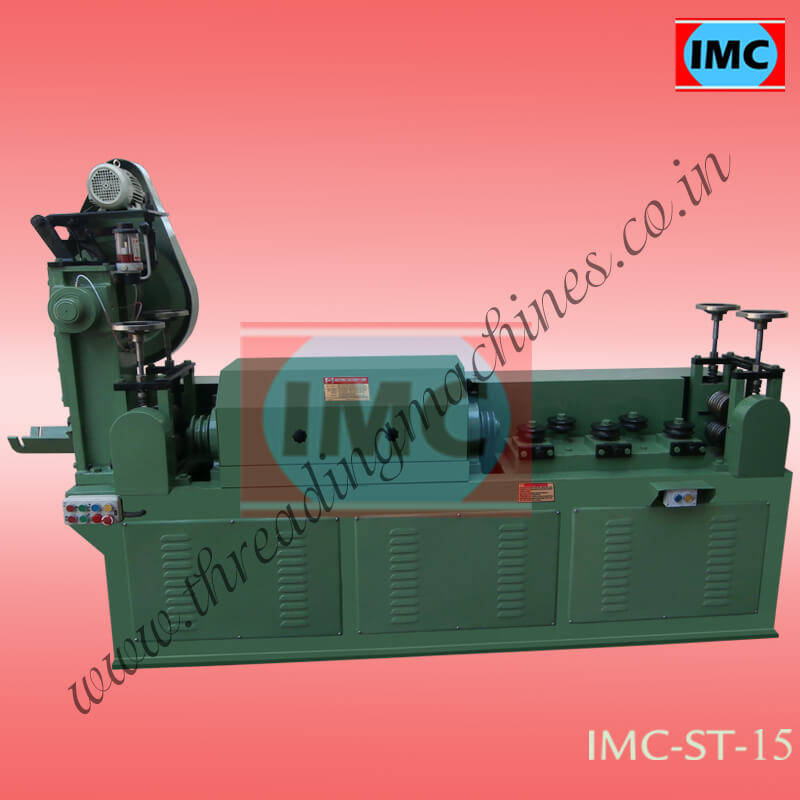

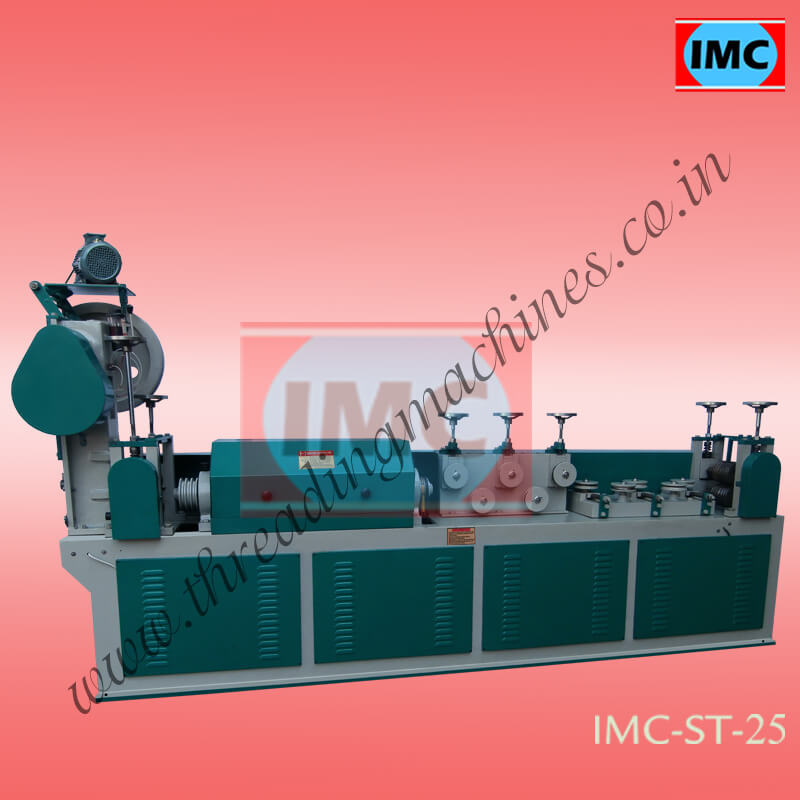

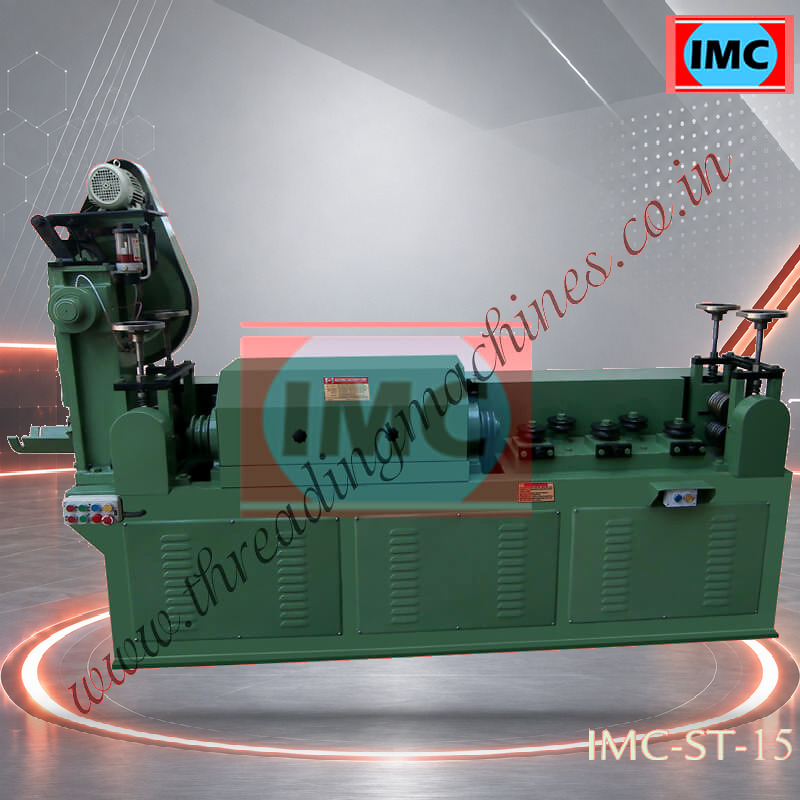

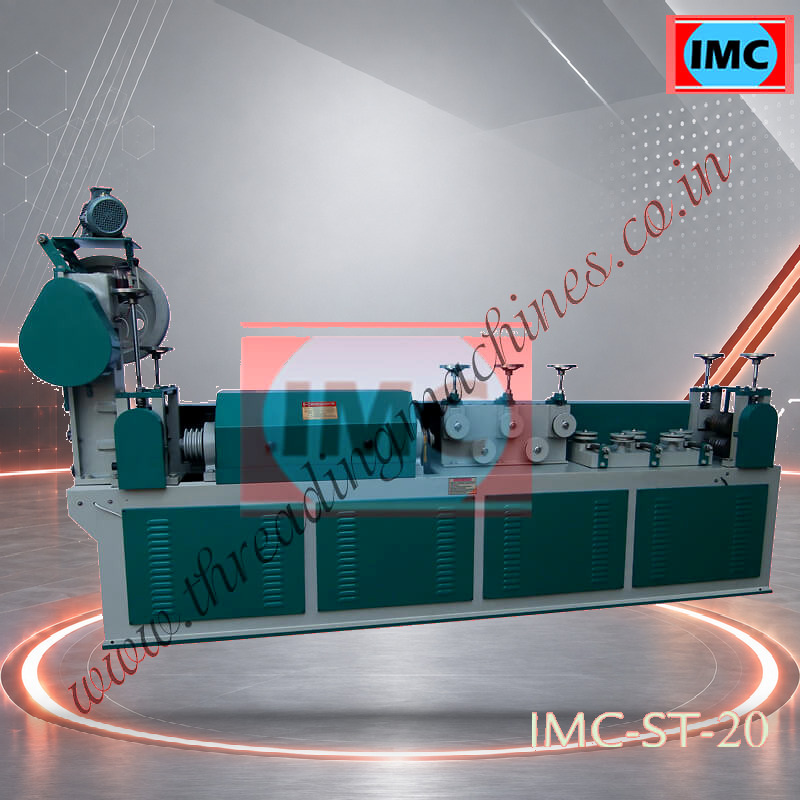

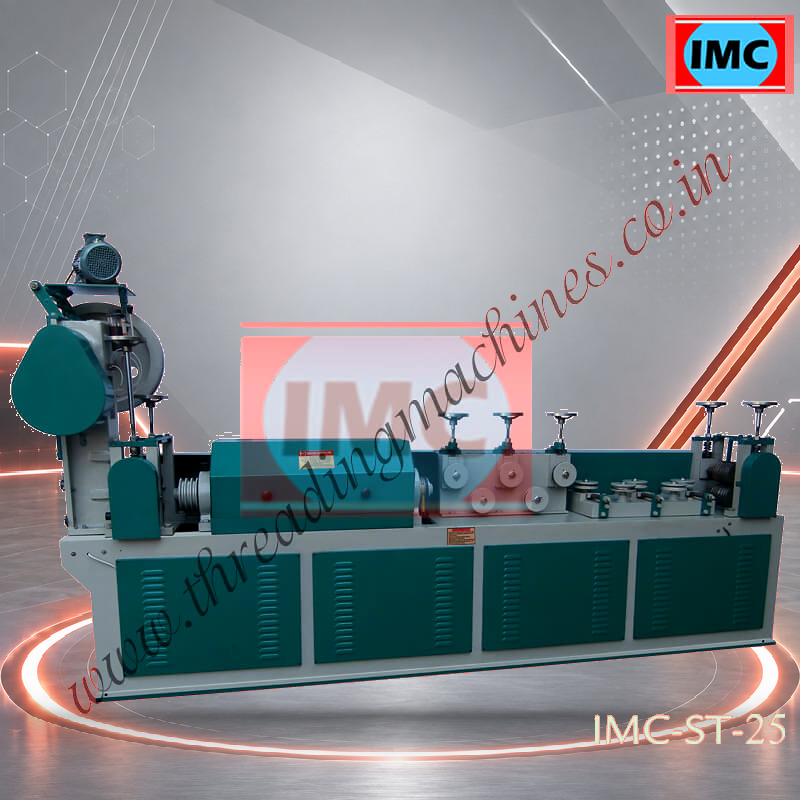

Specifications :	IMC-ST-14	IMC-ST-15	IMC-ST-16	IMC-ST-20	IMC-ST-25
In Thickness of wire	5 to 14mm	6 to 15mm	8 to 16mm	10 to 20mm	15 to 25mm
In Length of wire to be cut automatically	As per Requirement	As per Requirement	As per Requirement	As per Requirement	As per Requirement
Feeding capacity per min.	60' feet	60' feet	60' feet	60' feet	40' feet
Power of motor H.P.	10 H.P.	15 H.P.	15 H.P.	25 H.P.	30 H.P.
Required R.P.M.	1440	1440	1440	1440	1440
Approx. Weight in Kg.	1300	1500	2500	3000	3500
Floor space required	91"x22"	105"x24"	125"x24"	150"x27"	180"x36"

Frequently Asked Questions About Wire Straightening And Cutting Machine

For this wire straightening and cutting machine, what application check should come before purchase?

Review wire grade, coil condition and cut length against the finished-component drawing before comparing models. Material behaviour and coil set influence straightening. Give the wire diameter and grade along with the finished length and straightness requirement.

Which details help IMC recommend the wire straightening and cutting machine configuration?

Include wire grade, coil condition and cut length, your material specification and required output. Describe how the workpiece arrives at this operation and where it goes next, so tooling, handling and any accessories can be discussed as part of the proposed setup.

How can I request this wire straightening and cutting machine with the options I need?

Use the options listed on this product page and add the required quantity to your Quote List. In the final enquiry, identify wire grade, coil condition and cut length, destination and electrical supply. Any tooling, installation or spare-part requirement should be stated explicitly for inclusion in the offer.
