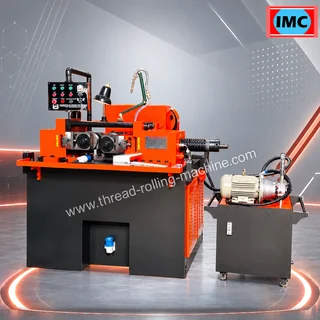

Hydraulic Thread Rolling Machine 2 Roll

Industrial Machine Corporation has been in the business of manufacturing industrial machines for more than a decade now. By being in this business for so long, we have acquired vast experience and expertise which we have applied in manufacturing and exporting of various industrial designs to our clients from across the world. Our specialization has made us build each and every machine with the utmost technology and one such machine is the hydraulic thread rolling machine 2 roll. Ever since we introduced ourselves as a hydraulic thread rolling machine 2 roll manufacturer, we are getting maximum clients and hence, immense success and popularity and we give credit for all the achievements to the method of production that we use while production. Our manufacturing unit based in Ludhiana is one of the most advanced units comprising of all the latest and upgraded machines, newest to newest technologies, and vastly experienced manpower who use the available resources very wisely to manufacture the best thread rolling machine. Our zeal and intensity for giving our best every time comes from the fact that customers worldwide have unflinching faith in Hydraulic Thread Rolling machines manufactured at Industrial Machinery Corporation.

Listed below are some of the most notable features of our hydraulic thread rolling machine 2 rolls:

• It is a powerfully constructed machine that allows deep forming of threads, worms, and serration knurls

• The powerful and brawny body of this machine is made using the finest quality grade-1 casted and hardened iron.

• The duly scrapped slides allows the easy alteration and tuning of this machine as well as the tooling which enables even the unskilled operators to work efficiently and operate this machine with super-ease

• Our hydraulic thread rolling machine is well designed to suit mass production and the best surface finishes ? ? ? ?

While we make our thread rolling machine, we make sure that we make our hydraulic thread rolling machines in a best-customized way as per the perquisite and comfort of the operators. We are always in endeavor to win our clients just by best performance and providing finest of quality in thread rolling machine not by providing low-quality machine on cheaper rates. Our track record has been quite impressive and most of our clients have been with us in a long time relation. While manufacturing our hydraulic thread rolling machine we keep a strict eye on all the manufacturing process and make sure that there no sort of compromise made at any point of the entire manufacturing process.

Following are the technical specifications of our hydraulic thread rolling machine-2 Roll

• Max. Pitch Can be Rolled - 8 mm

• Max. Diameter can be Rolled In-feed - 125 mm

• Through Feed - 70 mm • Max. Rolling Length In-feed - 150 mm

• Through Feed - Indefinite • Max. Outer Diameter Thread Rolls - 220 mm

• Spindle Diameter (Bore Diameter) - 69.85 mm

• Max. Width Thread Rolls - 150 mm

• Maximum Rolling Force - 40 Tons

• Motor for Roll Spindles - 15 H.P. / 1440 RPM

• Motor for Hydraulic Pump - 7.5 H.P. / 1440 RPM

• Motor for Coolant Pump - 0.1 H.P. / 3000 RPM

Hydraulic Thread Rolling Machine

  Thread Rolling Dies 3 Roll                                                                                                  Thread Rolling Dies 2 Roll

IMC Thread rolls are used on thread rolling machine. These rolls comes in set of two and three pieces manufactured from D2,D3 and M2 Material to suit any type of machine. For any specification of thread such as ISO Metric Din Whiteworhth America, Trapozodical, Acme etc
