Rebar Thread Cutting Machine Manufacturer in India

Rebar Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Rebar Thread Cutting Machine for your component and the required production operation.

Define the component to be produced

This equipment is selected to cut the required thread on prepared reinforcement-bar ends for the specified coupler connection. A manufacturing enquiry needs the actual finished-part drawing and the condition of the starting material. List rebar diameter and grade, end preparation, coupler thread, pitch and required thread length. Where several components are planned, separate their quantities and dimensions so that a model suitable for one item is not assumed to cover the entire range.

Match the process and tooling

Ask IMC to review bar-end preparation, compatible die-head tooling, clamping and full-length bar support for the component schedule. Clarify which tools are included for the first job and which are needed for a changeover. Clarify the preparation sequence for the intended coupler system instead of assuming every system uses the same bar-end geometry. Preparation, material handling and any subsequent operation should appear in the production plan alongside this process.

Establish acceptance before ordering

A representative component should be checked for the finished thread, coupler engagement and inspection defined by the connection specification. State the drawing requirements and how the result will be assessed. Use the published specifications to shortlist the model, then send the material and batch information with your chosen quotation options. Agree the supplied tooling, power requirements and support scope in the written offer.

Information to send with your enquiry

  • Rebar diameter and grade
  • End preparation
  • Coupler thread
  • Pitch and required thread length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Thread Cutting Machine Manufacturer, Thread Cutting Machine Exporter, Thread Cutting Machine India, TMT Bar Thread Cutting Machine Manufacturer
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

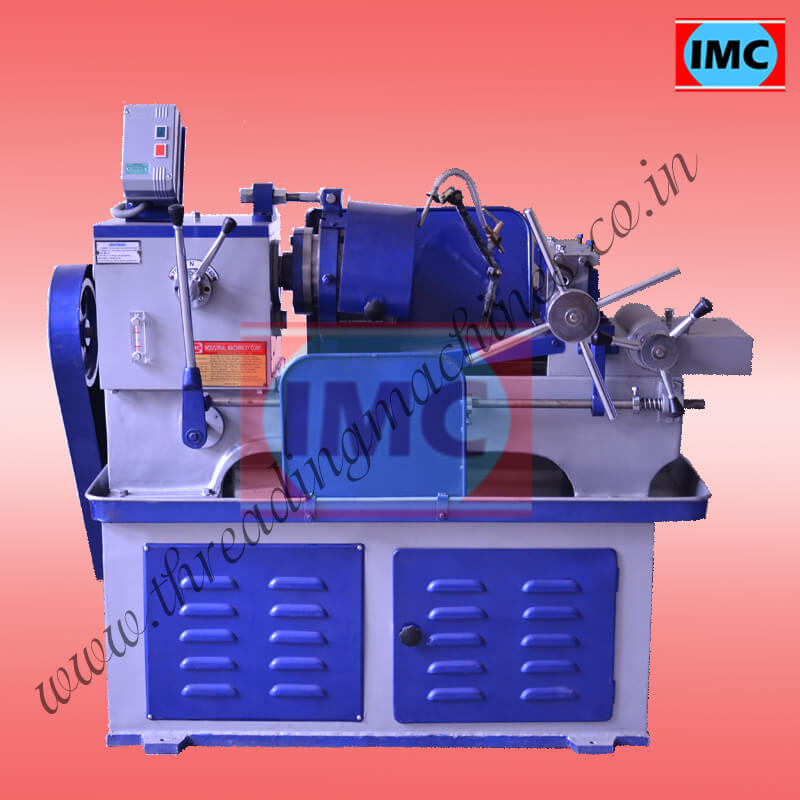

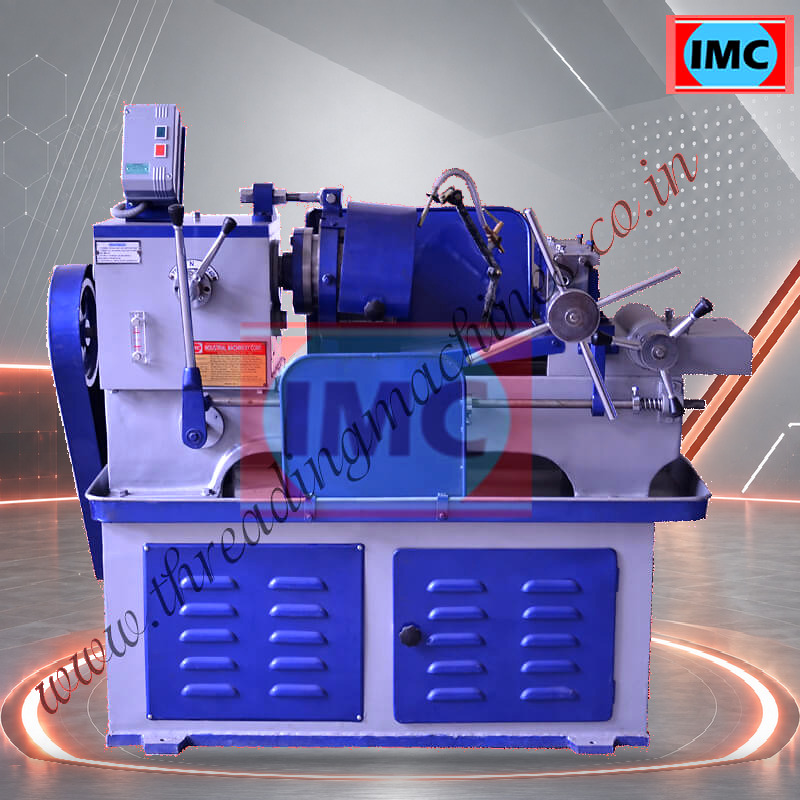

Bar or Rebar Threading Machine Before I start writing something about our machinery, being a common man, I would advise all the buyers of Rebar Thread Cutting Machine to please sit for some time with a paper and a pen and run your brain on what are the main specifications that you need in your rebar thread cutting machine. I am advising this simply because a rebar threader that suits your requirements is the best to buy. Apart from this, another piece of advice that I would render for free is to buy a rebar threader machinery as per your customization requirements, it is always good to approach some experienced bar thread cutting company in India.


As far as experienced rebar thread cutting company in India is concerned, there is no second name for industrial machinery corporation. Industrial Machinery Corporation has been in the business of tmt bar thread cutting machine manufacturing for more than a decade and has gained much-needed experience and skills to make this machine. With its manufacturing unit based in Ludhiana, we have more than 12 years of experience in making the best quality Bar or TMT Bar Threading Machine. We have been serving all our clients with the best of industrial machines and not only this; we have been giving exceptional after-sales service, in case, any of our machines face any technical problem which is very atypical. Every three to four months, we reassess all our machines and see if they are working fine to produce the best quality rebar threading machine Further to maintain the quality of our bar threading machine we make sure that this machine is made keeping all the international standards and parameters in mind just. Post-production our quality supervision team checks all our machines for all post-production defects as well as durability, strength, robustness, efficiency, and versatility. Once found perfect only then our machine is packaged and delivered to our clients. While manufacturing  Bar Thread Cutting Machine, we ensure that only that raw material is used which has surpassed various quality checks before entering into our manufacturing unit. For all these 12 years of being in business, we have always kept our production standards very high and ensured that there is no flaw in the entire process. Our threader machines work on the casing method using HSS Tangential chasers and have the capability to cut a huge variety of threads. The main point herein is that this machine depends upon different types of chasers to cut a variety of threads.

Listed below are the main parameters of the bar threading machine that we manufacture here at Ludhiana based manufacturing base:

• Rebar Diameter: 16-40mm
• Motor:4KW
• Electricity: Three phase
• Phase: 380V 50HZ
• Main Shaft Speed: 40-62r/min
• Max Length: 80mm
• Net Weight: 420kg
• Packing
Specification: 1190X730X1200m.m

Below is the list of cuts that our Bar Threading Machines manufactured at our unit based in Ludhiana can cut:

• Matric
• BSP
• BSPT
• NPT
• UNF
• UNC
• BSW
• Acme Threads
• B.S.F

Here is the list that contains the names of various parts of the TMT Bar Threading Machines made by an industrial machinery corporation at the Ludhiana base unit:

• Base
• Head Stock
• Saddle

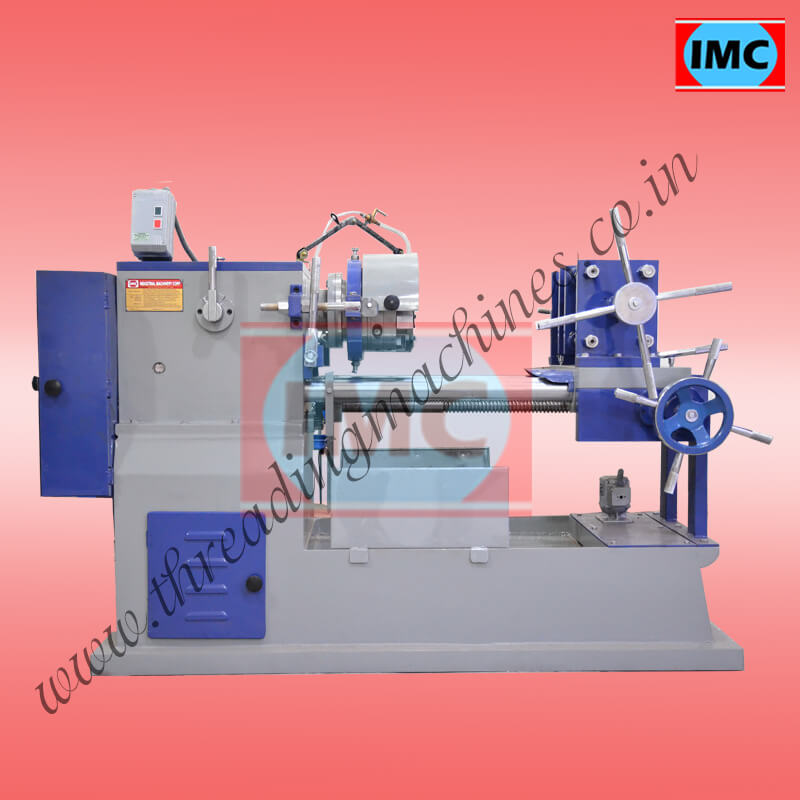

• Bed or Pillar Type Clamping Vice
• Die Head

Specifications :

MODEL

1/4" TO 1"

(6MM to 25MM)

(BED TYPE)

3/8" TO 1.1/2"

(10MM to 40MM)

(BED TYPE)

1/2" TO 2.1/2"

(12MM to 65MM)

(BED TYPE)

Saddle Movement10"13"22"
Spindle Speed Range75-14075 -14045 - 90
Number of Spindle Speed222
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550990

Tangential Chaser

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they were intended.

IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. The same No. pc. The other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing the entire set.

Read More...

Frequently Asked Questions About Rebar Threading Machine

Use the actual connection drawing or thread specification, including the bar grade and size range. Agree the end-preparation sequence and inspection method before selecting the threading setup.

Include bar grade and the complete coupler specification, your material specification and required output. Describe how the workpiece arrives at this operation and where it goes next, so tooling, handling and any accessories can be discussed as part of the proposed setup.

Use the options listed on this product page and add the required quantity to your Quote List. In the final enquiry, identify bar grade and the complete coupler specification, destination and electrical supply. Any tooling, installation or spare-part requirement should be stated explicitly for inclusion in the offer.
