Steel Rod Threading Machine Manufacturer in India

For the last 12 years, since we have stepped into this business of industrial machine manufacturing, we have been busy manufacturing the best quality industrial machines and one such machine that we manufacture here is the rod threading machine. The rod threading machine built by us has been admired by clients worldwide and has made it the most recommended industrial machine. One of the major factors that have made our rod threading machine popular is that we make not only our rod threading machine but all our machines using the best raw materials. All the raw material comes from the most reliable sources, and prior to getting used; all the raw material is passed through the scrutinizing eyes of our quality supervision team for any sort of flaw or defect. Only the best quality raw material is forwarded for manufacturing and the raw material found with even the smallest of defects is stopped from getting used for the production process. The rod threading machine made by us is the most compact, handy, efficient, compact and easy to use. Apart from this, there are many other notable features that allow this machine to be the best machine in its niche which has the capacity to give results in the form of highly précised and accurately finished high-quality threads despite operating at a very high speed. ? ? ? ?

We have made our rod threading machine in such a versatile way that it is compatible with producing a wide variety of threads but this variety would entirely depend upon the type of chasers or cutters that are fitted in the rod threading machine at that time. Our rod threading machine is used to thread rods and is broadly used in factories and tool rooms. Commonly this machine works best when it is fixed with HSS Tangential chasers. The rod threading machine that we make runs using the chasing method according to which the machine makes the rod stay in one place and allows the die to rotate around which makes the best quality, most accurate, and most precise threads around that rod. Let’s have a quick look on the basic specifications and features of the rod threading machine built by industrial machine corporation, the rod threading company, India:

• Material: carbon steel, alloy steel and non-ferrous metal

• Screw thread diameter: 6mm-30mm

• Screw pitch: 0.5-3.5mm

• Roll screw wheel scope diameter: 120mm- 170mm

• Roll screw wheel scope aperture: 54mm

• Roll screw wheel scope max width:  100mm

• Main spindle tilt angle: ±3°

• Main spindle RPM: 34/43/57/72rmp

• Largest hydraulic pressure: 80KN

• Spindle transmission power: 4kw

• Hydraulic transmission power: 2.2kw

• Cooling power: 90w

• Size: 1480x1500x1050mm

• Weight: 900±50Kg

• Diameter of Foundation: 16mm to 40mm

• Length of Threading: 160mm

• Cutting Oil Capacity: 10 Liters

Here is the list of threads and cuts that our rod threading machine can cut:

• Matric

• BSP

• BSPT

• NPT

• UNF

• UNC

• BSW

• Acme threads

• B.S.F. threads

Listed below is the range of threads in which our rod threading machines can cut threads:

• 1/4" to 1" do/-

• 3/8" to 1.1/2" do/-

• 1/2" to 2.1/2" do/-

• 1" to 4" Capacity do/-

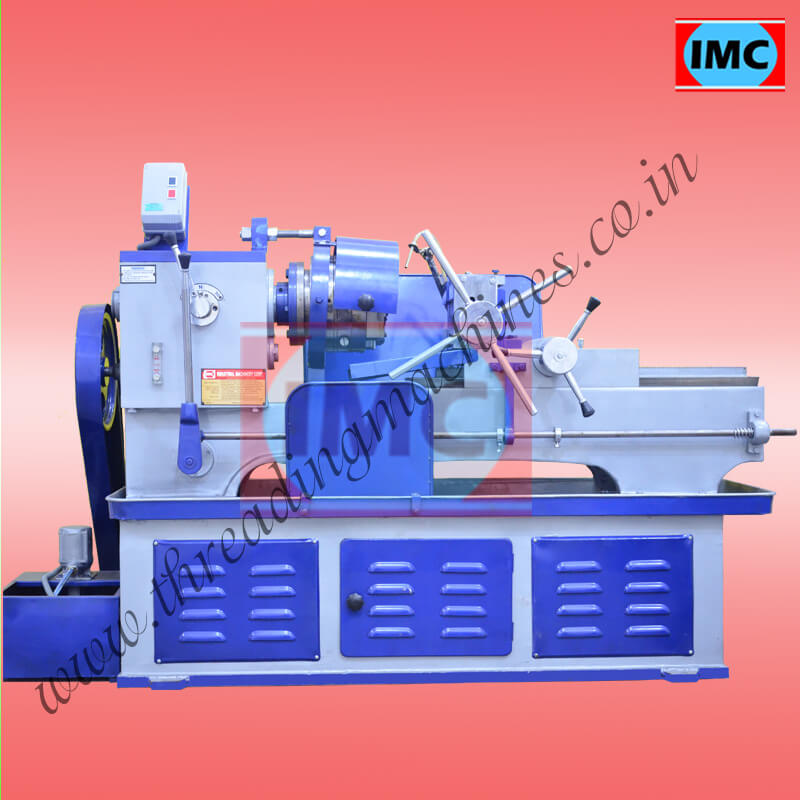

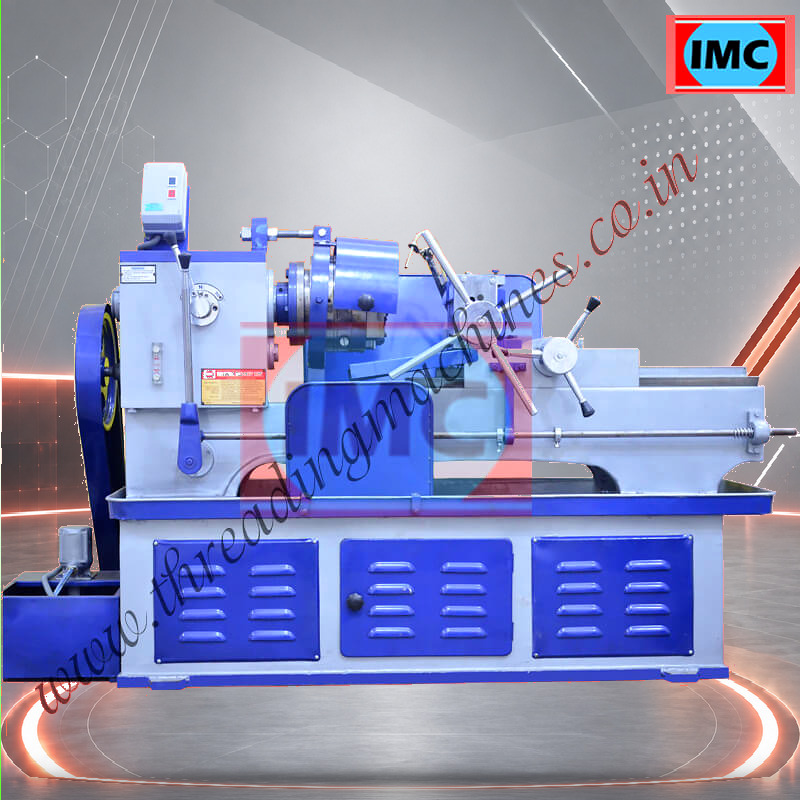

Rod Threading Machine

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they were intended.

IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. The same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing the entire set.
