Pipe Tapping Machine Manufacturer in India

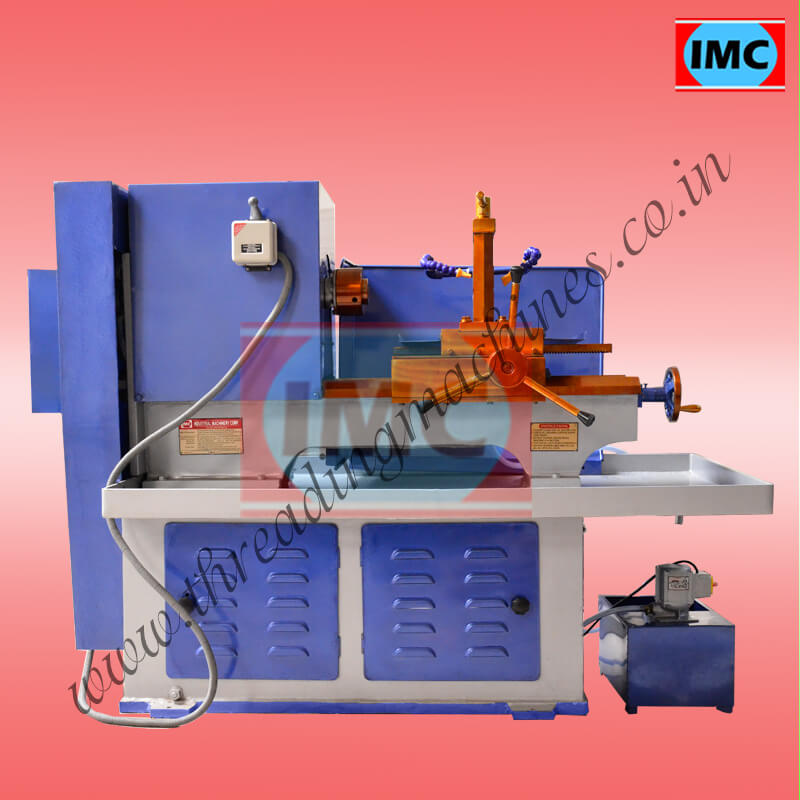

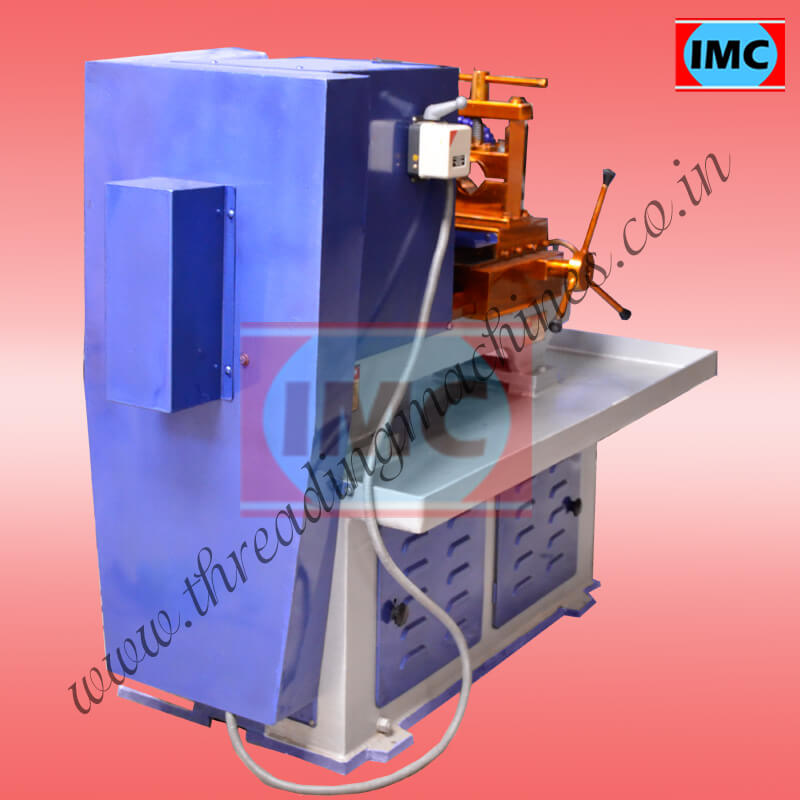

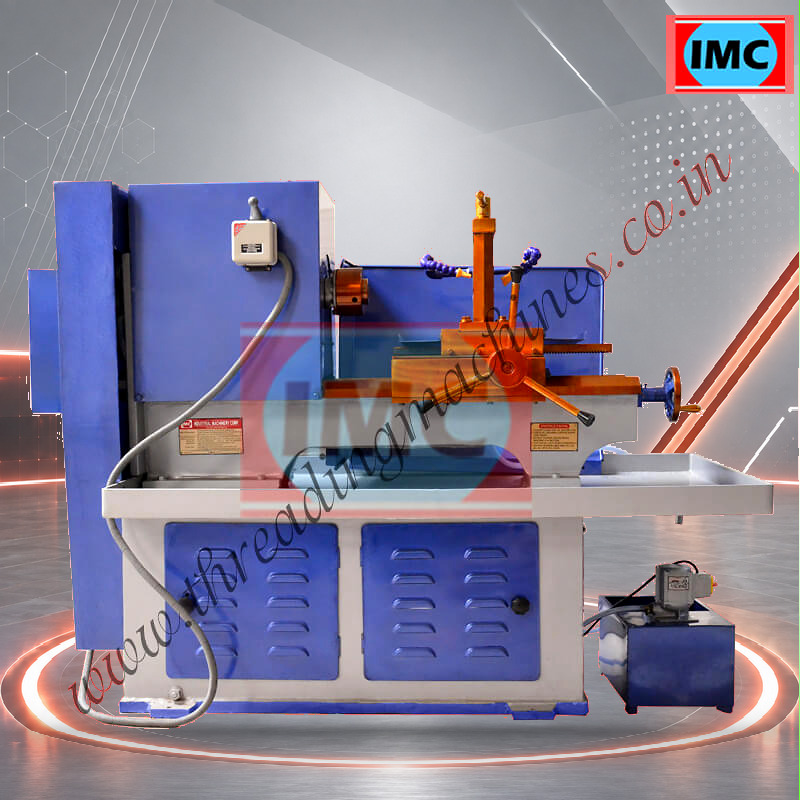

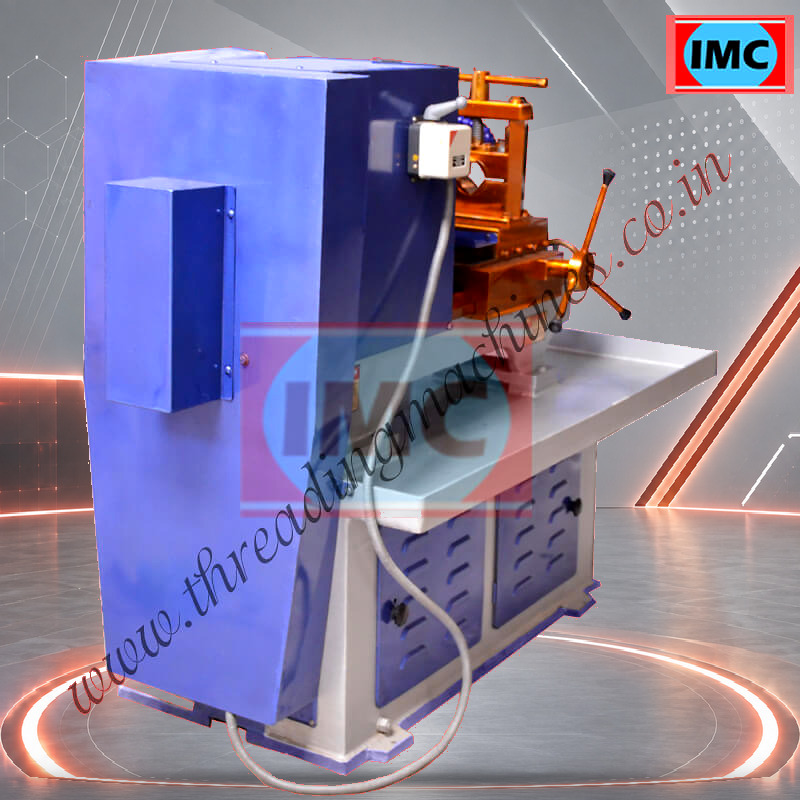

Internal Pipe Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Pipe Tapping Machine for your component and the required production operation.

Define the component to be produced

This equipment is selected to make internal threads by tapping prepared holes in compatible pipes and bored rod components. A manufacturing enquiry needs the actual finished-part drawing and the condition of the starting material. List hole diameter and depth, blind or through-hole form, material, thread standard and pitch. Where several components are planned, separate their quantities and dimensions so that a model suitable for one item is not assumed to cover the entire range.

Match the process and tooling

Ask IMC to review tap selection, tap holding, component alignment and chip-clearance arrangements for the component schedule. Clarify which tools are included for the first job and which are needed for a changeover. Rod tapping here means an internal thread in a prepared bore, rather than external threading of a solid rod. Preparation, material handling and any subsequent operation should appear in the production plan alongside this process.

Establish acceptance before ordering

A representative component should be checked for internal thread size, useful depth and acceptance with the specified gauge or mating thread. State the drawing requirements and how the result will be assessed. Use the published specifications to shortlist the model, then send the material and batch information with your chosen quotation options. Agree the supplied tooling, power requirements and support scope in the written offer.

Information to send with your enquiry

  • Hole diameter and depth
  • Blind or through-hole form
  • Material
  • Thread standard and pitch

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Threading Machines, threading die head, Internal Pipe Threading Machine, Threading Taps, Internal Threading tap, internal threading tools, Internal Threading Machine, Internal pipe threading machine india, Internal threading, Buy Internal Threading Machine Online At Best Price, Internal Threading Tools
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

We stepped into this business of designing, developing and manufacturing industrial tools and machines and since then, we have been busy accumulating the much needed experience and expertise required to build finest quality industrial machines. It is due to our gathered expertise and experience that we have developed a huge rage of machines in our cabinet. While designing and manufacturing all our machines we make sure that we maintain the quality of our machine on the topmost level. In the process of making our machines, we make sure that we make all our machines in a best customized way as per the specifications given by the clients during briefing about the machine. We make our machines as much user-friendly as possible. During this entire process we make sure that we don’t do any sort of compromise in terms of quality and perfection that industrial machine corporation has been putting in its machines for the last one decade. ?

The raw material that we use to manufacture our Internal Threading Machine is brought from the best of resources and before using it, we allow our quality supervision team to have a good look at the raw material for any sort of defect or flaw. Once they are fully satisfied with the quality only then the raw material is allowed to be used for Internal Threading Machine manufacturing process. Apart from assessing raw material, the next thing for which our quality supervision team is responsible for is to check the finished product. Post-production, our internal threading machine is passed through the stringent eyes of the quality supervision team which makes sure that all the features and technical features of our internal threading machine are up-to-date. This team makes sure that all the safety features of not only the internal threading machine but all our machines are in their best position to ensure that this machine is absolutely safe to work and has no security lapses. These are the reasons why our internal threading machine has all the qualities of being the most efficient machine in the business. Our machine is fit to fullest and all the qualities like efficiency, durability, strength, robustness and competence are in built. The use of best quality raw material ensures that our Internal Threading Machine is sturdy enough to face all the wear and tear, breakage and abrasion that may arise in the industries and factories. Mentioned below are some of the notable standard features of the Internal Threading Machine that we manufacture hare at our manufacturing unit based in Ludhiana:

• Trapezoidal thread (as per IS - 12818)

• Square Thread


Apart from above mentioned standard features, there are several optional features and accessories that we give to our clients depending upon the customization requirements made by our clients:

• Simple in Operation (Layman can Operate)

• Robust and Study design

• AC Servo and PLC operated

• Fast threading compared to conventional threading machine

• No setting is required for different pipe diameter

• No change of saw for internal and external thread


Let’s have a quick look at the technical specifications of the internal threading machine that we built:

• Threading length can be cut - 150 M.M

• Number of speeds in the gearbox - 5

• Production/hour - 80 Pieces.

• Electrical Motor - 5 H.P. 960 RPM


Internal Pipe Threading Machine Specifications:

Model No.  1/2" to 2" 1/2" to 3"
Threading length can be cut 150 MM 150 MM
Number of speed in gear box 5 5
Production per hour 80 Pcs. 80 Pcs.
Electrical Motor 3 H.P. 960 RPM 5 H.P. 960 RPM


Frequently Asked Questions About Internal Pipe Threading Machine

Review bore, internal thread length and access against the finished-component drawing before comparing models. Tool access, bore diameter and internal thread depth are essential. Send a section drawing showing the thread and surrounding features.

Include bore, internal thread length and access, your material specification and required output. Describe how the workpiece arrives at this operation and where it goes next, so tooling, handling and any accessories can be discussed as part of the proposed setup.

Use the options listed on this product page and add the required quantity to your Quote List. In the final enquiry, identify bore, internal thread length and access, destination and electrical supply. Any tooling, installation or spare-part requirement should be stated explicitly for inclusion in the offer.
