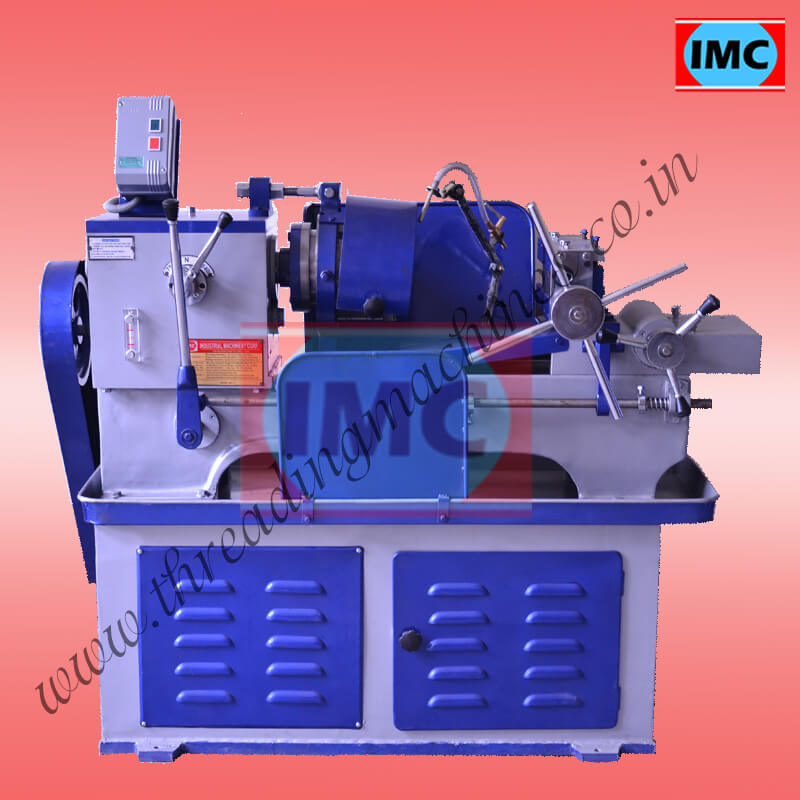

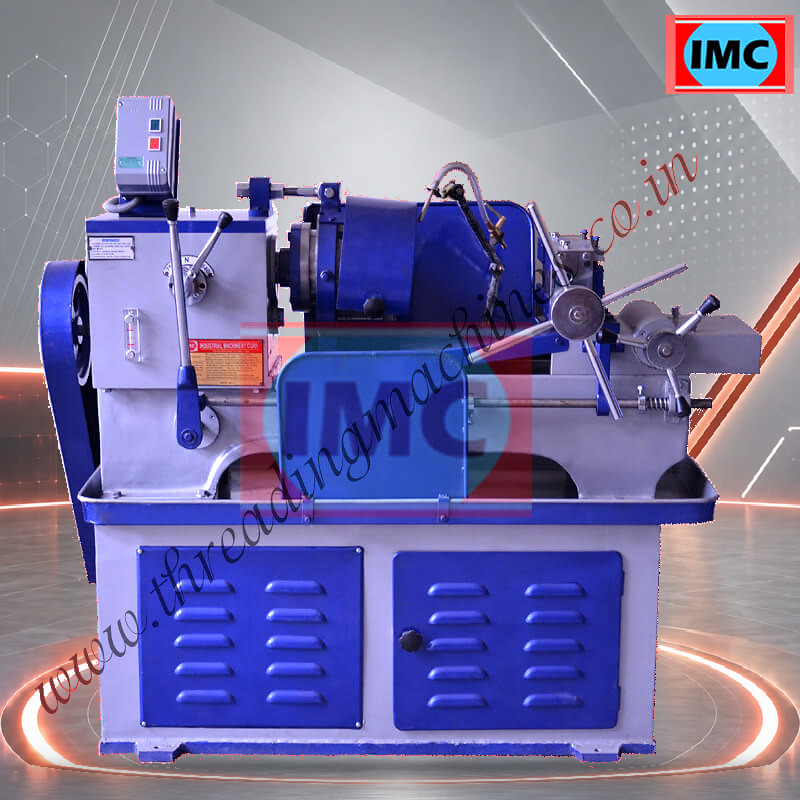

Electric Conduit Pipe Thread Cutting Machine

Electric Conduit Pipe Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Electric Conduit Pipe Thread Cutting Machine for your component and the required production operation.

Define the component to be produced

This equipment is selected to cut external threads on compatible conduit pipe ends for the specified threaded fittings. A manufacturing enquiry needs the actual finished-part drawing and the condition of the starting material. List conduit material, diameter, wall section, thread designation and fitting details. Where several components are planned, separate their quantities and dimensions so that a model suitable for one item is not assumed to cover the entire range.

Match the process and tooling

Ask IMC to review pipe holding without unsuitable deformation, compatible chasers and end support for the component schedule. Clarify which tools are included for the first job and which are needed for a changeover. Check the actual conduit and connection drawing; a general pipe-threading size does not identify every conduit system. Preparation, material handling and any subsequent operation should appear in the production plan alongside this process.

Establish acceptance before ordering

A representative component should be checked for thread engagement with the intended fitting and the required thread length. State the drawing requirements and how the result will be assessed. Use the published specifications to shortlist the model, then send the material and batch information with your chosen quotation options. Agree the supplied tooling, power requirements and support scope in the written offer.

Information to send with your enquiry

  • Conduit material
  • Diameter
  • Wall section
  • Thread designation and fitting details

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Conduit Pipe Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Electric Conduit Pipe Threading Machine is used to thread the external area of the conduit pipes. IMC Machines were highly specialized and could be used solely for industry-specific purposes. There are only a few companies in the world that fabricate this particular type of machine.

One company that has won much acclaim in the area of conduit pipe thread cutting machines. We have a large range of thread cutting machines. The company has immense experience in the field of such machines. Also, the same to ensure that the customers get value for the money that they are spending.

The material used for fabrication is of high grade. There is an absolute assurance that there will be no issues during usage.

If one chooses to purchase a conduit pipe threading machine from a company that is reputed as the Industrial Machinery Corporation. The demand for these machines has grown manifold in the past few years.

A quality product always stands out in the market, and will always be able to create a niche for itself. This is exactly why this electric conduit pipe thread cutting machine, unlike several others, has been able to satiate the requirements of numerous big organizations, by providing them efficient and relatively maintenance-free service.

Conduit Pipe Thread Cutting Machine

MODEL

1/4" TO 1"

(6MM to 25MM)

(BED TYPE)

3/8" TO 1.1/2"

(10MM to 40MM)

(BED TYPE)

1/2" TO 2.1/2"

(12MM to 65MM)

(BED TYPE)

Saddle Movement10"13"22"
Spindle Speed Range75-14075 -14045 - 90
Number of Spindle Speed222
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550990


Frequently Asked Questions About Electric Conduit Pipe Threading Machine

Review conduit material and connection standard against the finished-component drawing before comparing models. Provide the actual connection standard and tube dimensions. Tooling should be confirmed against the required conduit thread rather than a general pipe description.

Include conduit material and connection standard, your material specification and required output. Describe how the workpiece arrives at this operation and where it goes next, so tooling, handling and any accessories can be discussed as part of the proposed setup.

Use the options listed on this product page and add the required quantity to your Quote List. In the final enquiry, identify conduit material and connection standard, destination and electrical supply. Any tooling, installation or spare-part requirement should be stated explicitly for inclusion in the offer.
